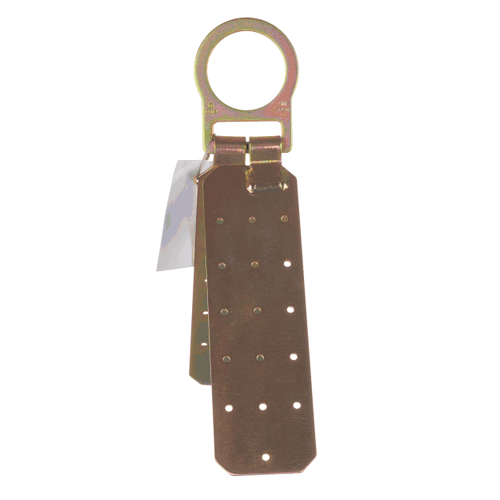

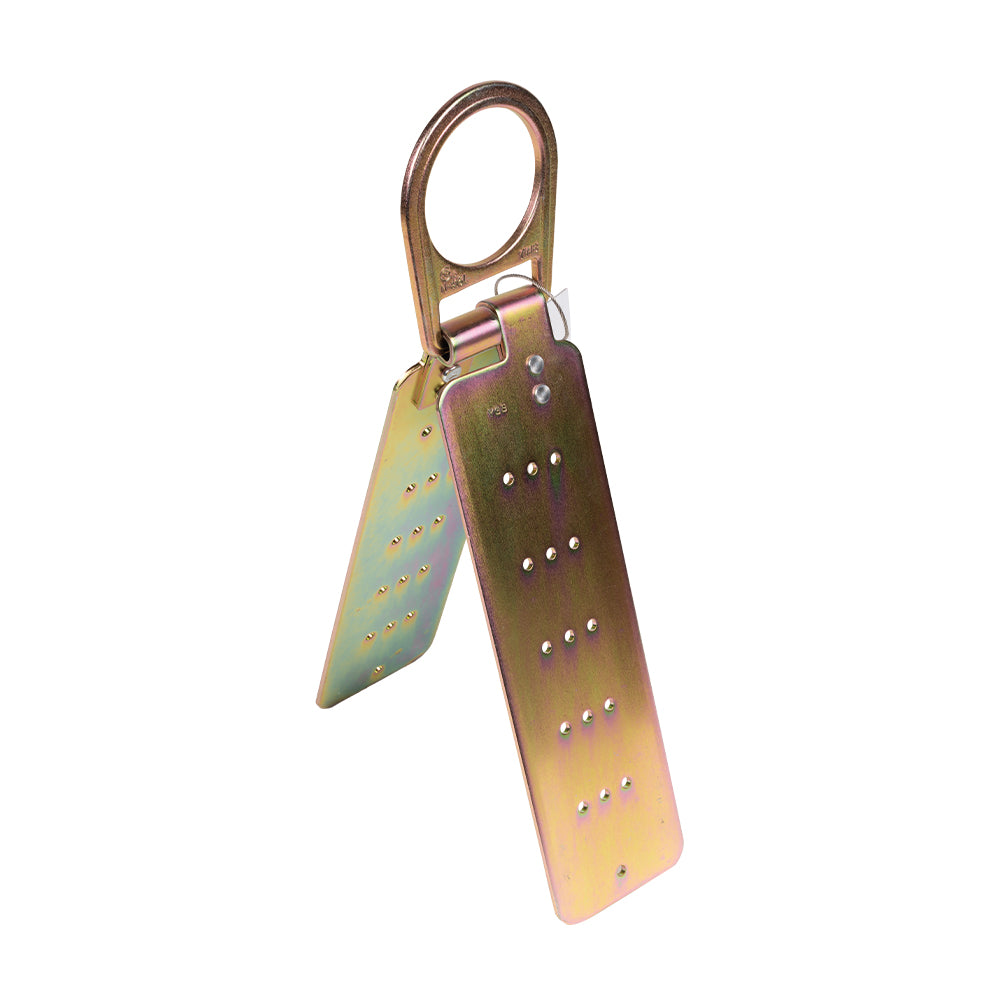

Reusable Roof Anchor – Galvanized Steel

The Reusable Roof Anchor is a durable anchorage device designed for installation on wooden beams used in roofing applications. Constructed from high-strength alloy steel and featuring a stamped D-ring, it provides a designated anchor point for compatible fall protection systems.

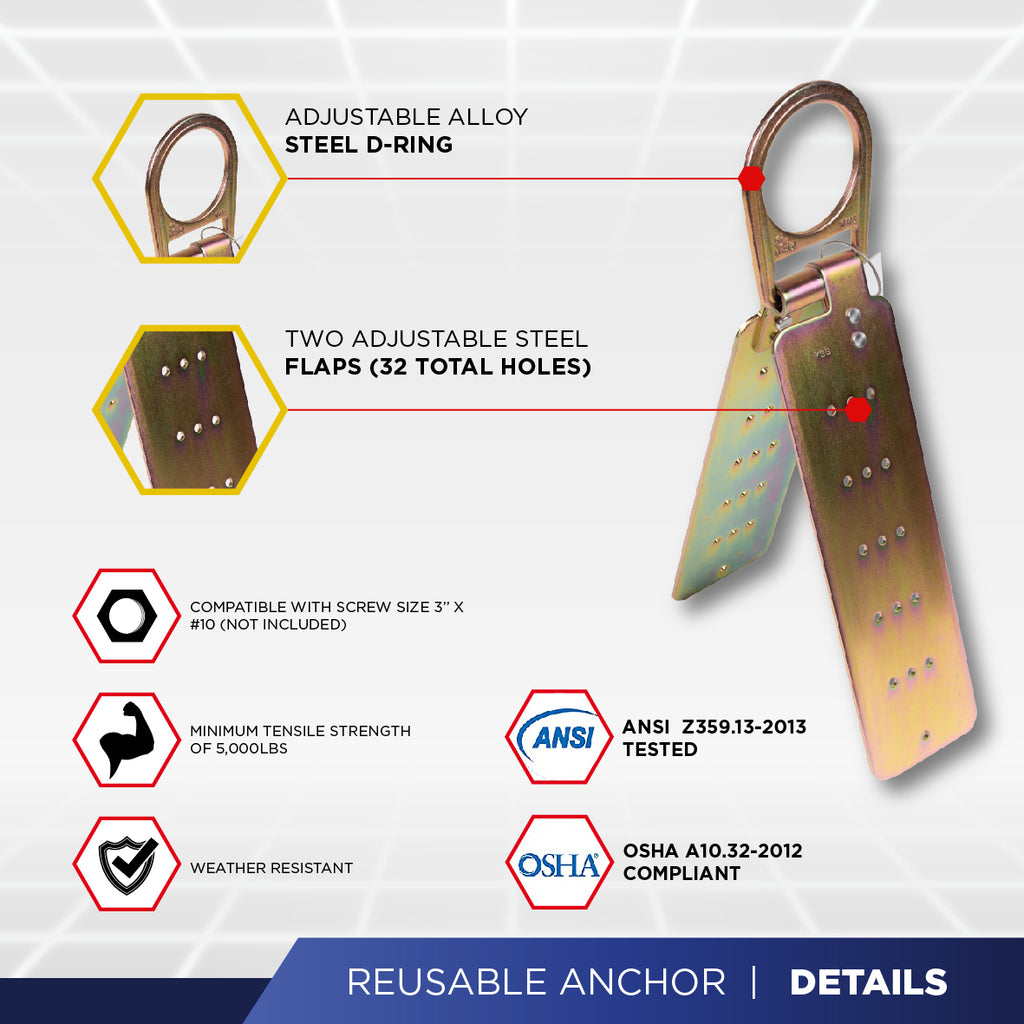

The anchor consists of two steel flaps, each featuring 16 holes for installation on opposite sides of a wooden beam using nails inserted through the mounting holes. Its galvanized steel construction and durable finish are designed for demanding roofing environments.

Key Features

• Reusable roof anchorage device

• Stamped D-ring anchor point

• Designed for installation on wooden roof beams

• Two steel mounting flaps

• 16 mounting holes per flap

• High-strength alloy steel construction

• Galvanized steel construction

• Available with powder-coated or zinc-plated finish

• Minimum breaking strength of 5,000 lbs.

• Meets or exceeds ANSI Z359.18-2017

Specifications

Material: High-Strength Alloy Steel

Construction: Two steel flaps with 16 holes per flap

Anchor Point: Stamped D-ring

Finish: Powder Coated or Zinc Plated

Minimum Breaking Strength: 5,000 lbs.

Weight: 2.39 lbs. ± 0.02 lbs.

Standard: Meets or exceeds ANSI Z359.18-2017

Applications

Designed for roofing applications where an anchorage device is installed on suitable wooden beams for use with compatible fall protection equipment.
