Description

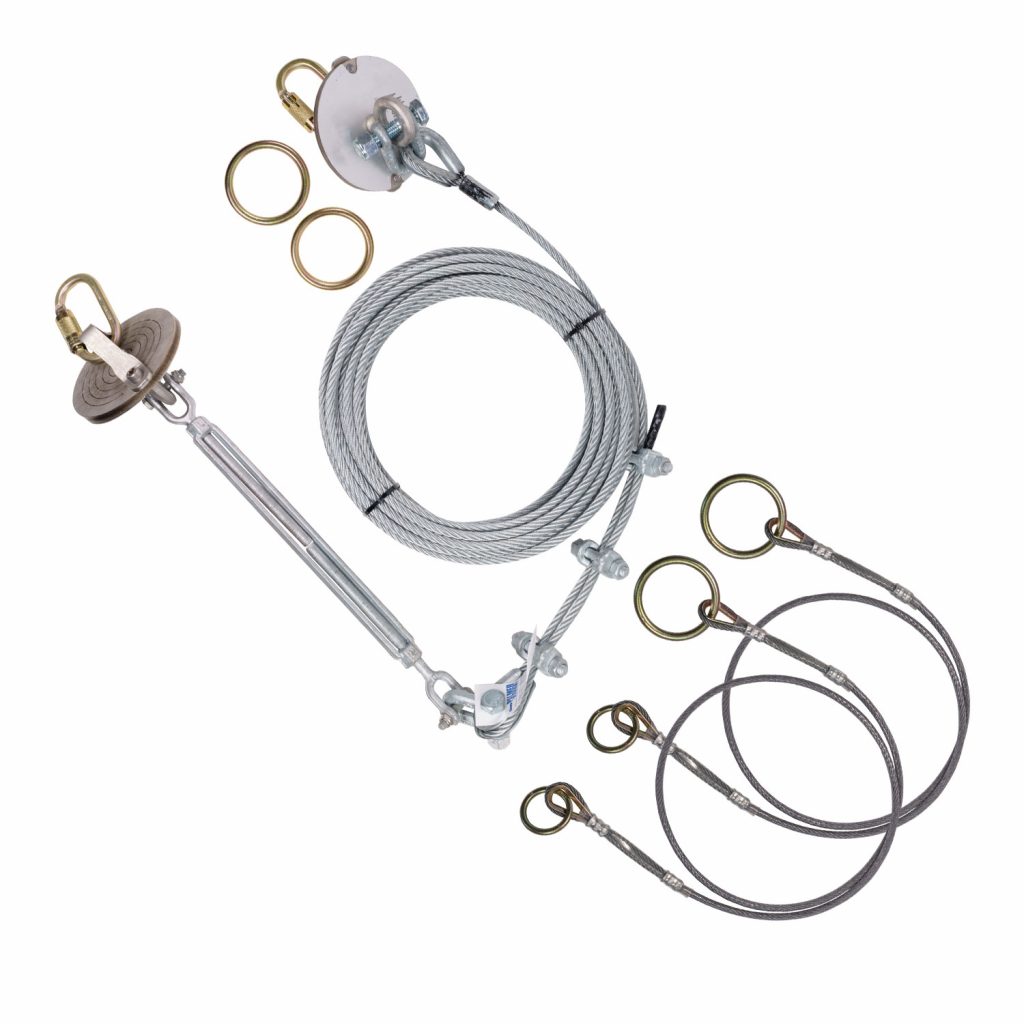

100 ft. Cable Horizontal Lifeline
The 100 ft. Cable Horizontal Lifeline is a preassembled fall protection system designed to provide horizontal mobility for up to two workers. The system is adjustable up to 100 feet and includes two 6-foot vinyl-coated cable chokers with pass-through rings.
The complete system comes preassembled in a backpack for convenient transportation, setup, takedown, and storage. Installation requires two suitable anchor points with a minimum capacity of 5,000 lbs. each.
Key Features
-
Horizontal lifeline system for up to 2 workers
-
Adjustable up to 100 ft.
-
Includes two 6 ft. vinyl-coated cable chokers
-
Pass-through rings included
-
Preassembled for easier setup and takedown
-

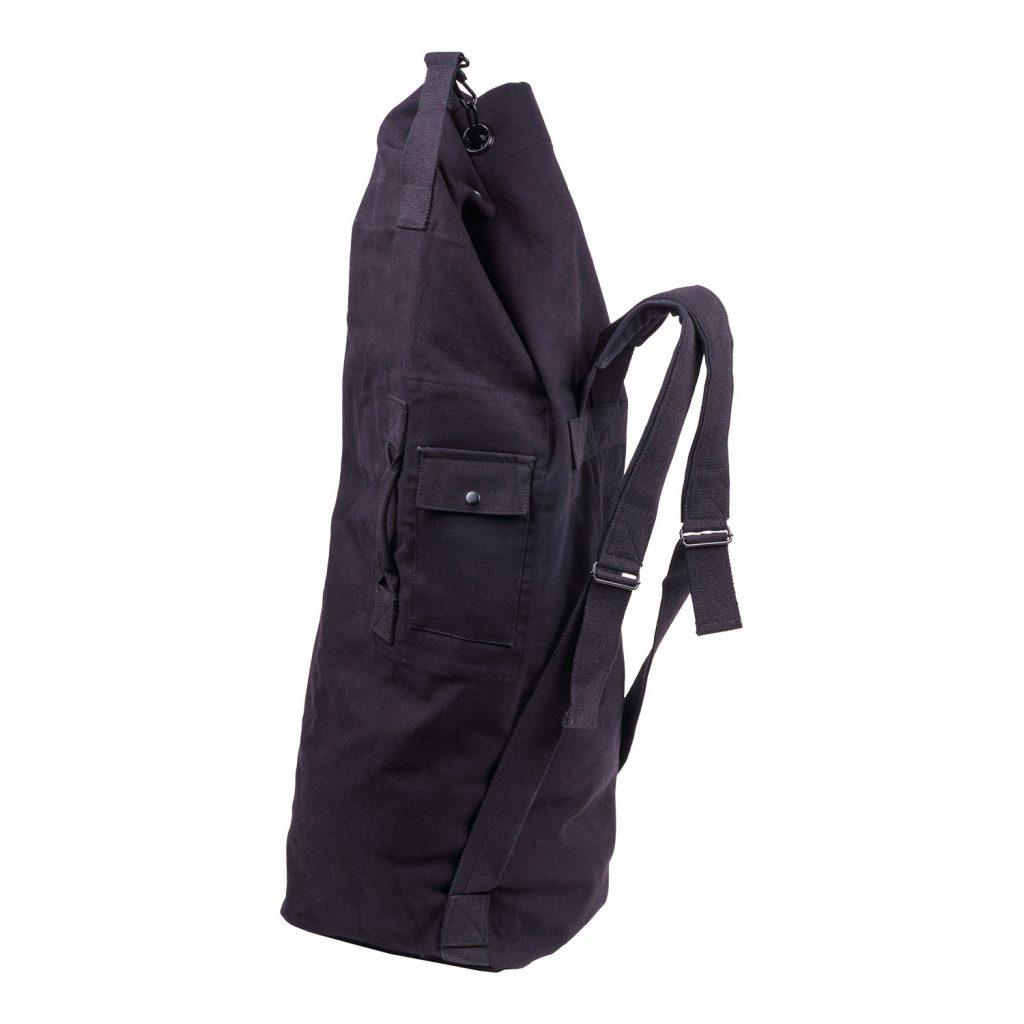

Backpack included for transportation and storage
-
Requires two 5,000 lb. anchor points for installation
-
3/8" galvanized cable
-
Two stainless steel Absorbinators
-
Galvanized turnbuckle
-
Galvanized fist grips
-
5,000 lb. system breaking strength
-
Maximum user weight of 420 lbs. per worker
Specifications
System Type: Cable Horizontal Lifeline
Maximum Length: 60ft or 100 ft.
Worker Capacity: Up to 2 workers
Maximum User Weight: 420 lbs. per worker
Cable: 3/8" Galvanized Cable
Absorbinators: 2 Stainless Steel
Turnbuckle: Galvanized
Fist Grips: Galvanized
System Breaking Strength: 5,000 lbs.
Required Anchor Points: Two anchor points rated at 5,000 lbs. each
Included: Two 6 ft. vinyl-coated cable chokers with pass-through rings and backpack
Standards & Compliance
Compliant with applicable requirements of:
-
OSHA 1926 Subpart M
-
OSHA 1910
-
ANSI Z359
-
ANSI A10.32
Applications
Designed for horizontal fall protection applications where workers need mobility along an elevated work area while connected to a compatible horizontal lifeline system. Suitable for construction, roofing, maintenance, and other elevated work environments requiring horizontal fall protection.
