Description

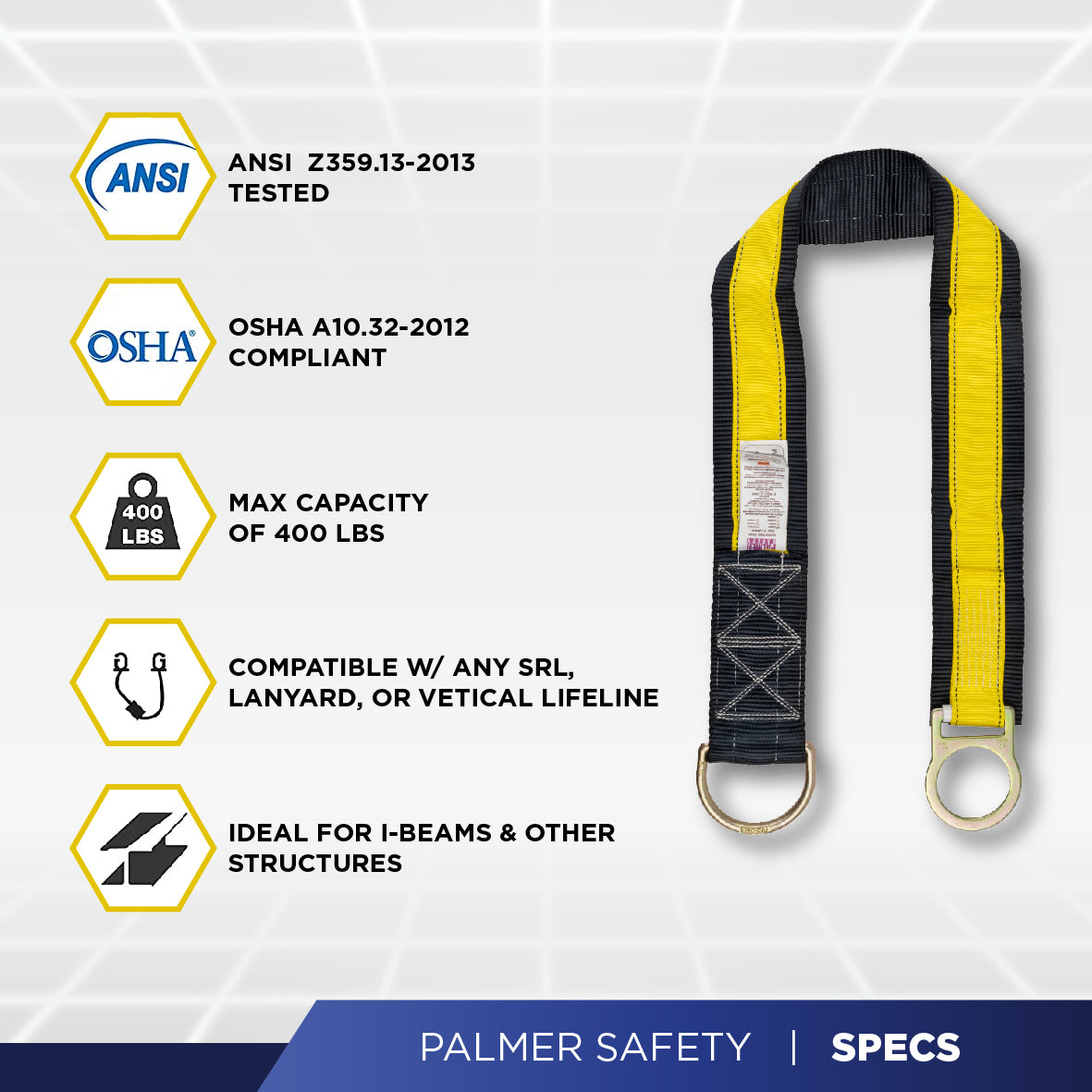

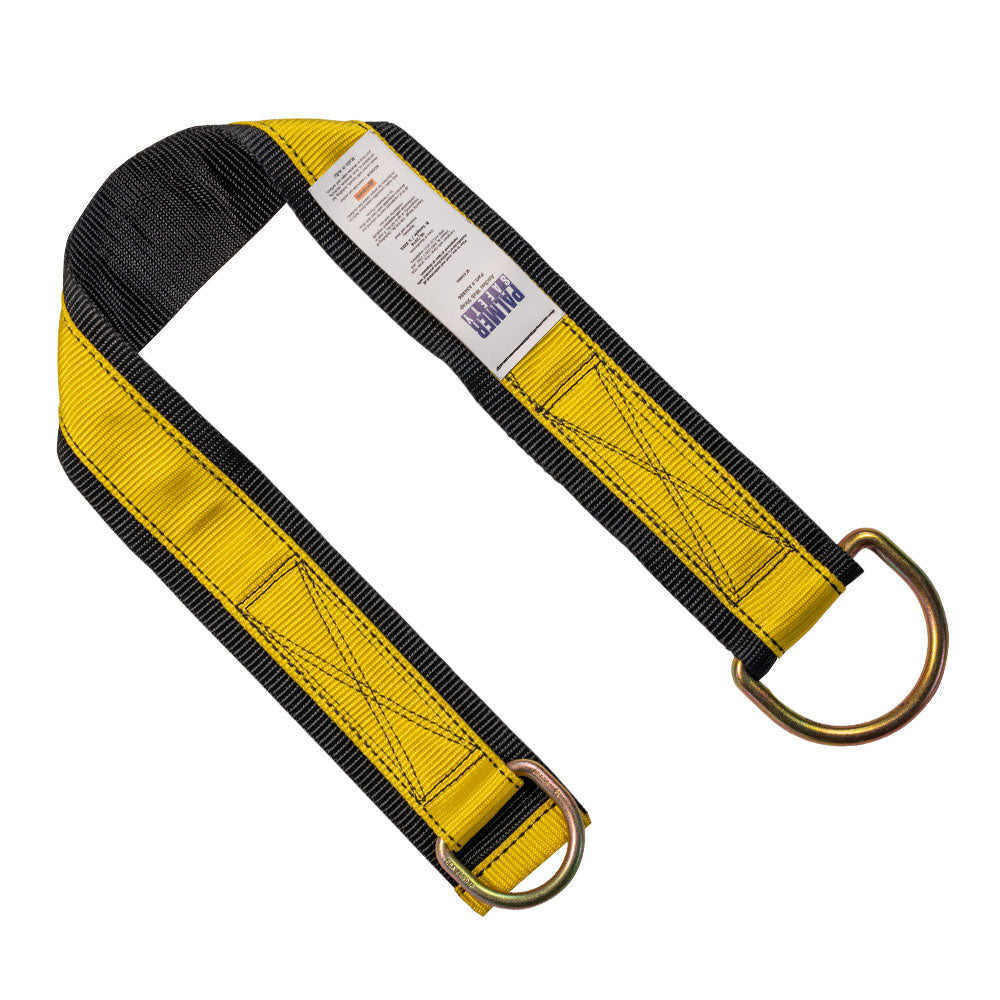

Cross Arm Strap – Fall Protection Anchor Strap
The Cross Arm Strap is designed to provide an anchorage connection for compatible fall protection equipment. It features 1-3/4" polyester webbing stitched with wider 3" webbing on the back for additional protection, along with a large D-ring and small D-ring.
Available in variable lengths, the strap is constructed with high-strength polyester webbing and alloy steel hardware. It provides a 5,000 lb. webbing and hardware breaking strength and is designed to meet or exceed applicable fall protection requirements.

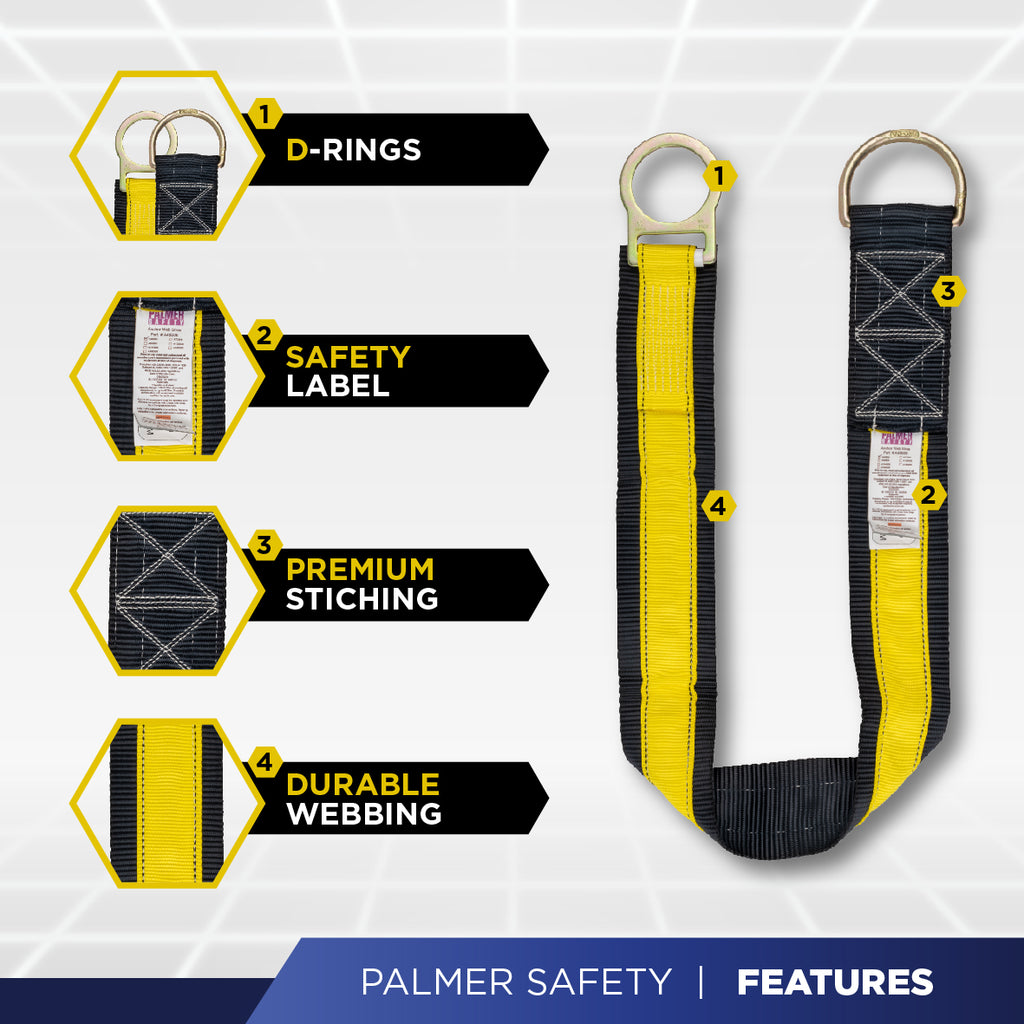

Key Features
-
3" wide reinforced construction
-
Variable lengths available
-
Large D-ring and small D-ring
-
1-3/4" polyester webbing
-
3" webbing stitched to the back for additional protection
-
High-tenacity polyester stitching
-
5,000 lb. webbing breaking strength
-
Alloy steel metal components
-
Golden yellow galvanized finish
-
5,000 lb. metal component breaking strength
-
Meets or exceeds ANSI Z359.1-2007 and OSHA requirements
Specifications
Webbing Material: Polyester
Webbing Widths: 1.73" ± 0.04" and 2.76" ± 0.04"
Webbing Breaking Strength: 5,000 lbs.
Stitching Thread: High-tenacity polyester
Metal Components: Alloy Steel, Yellow Chromate
Metal Finish: Golden Yellow Galvanized
Metal Component Breaking Strength: 5,000 lbs.
Static Strength: 5,000 lbs.
Dynamic Strength Test: Free fall from 4.92 ft. with a test mass of 220.46 lbs.
D-Rings: Large D-ring and small D-ring
Standards & Compliance
Meets or exceeds ANSI Z359.1-2007 and OSHA requirements as specified by the manufacturer.
Applications
Designed for use as an anchorage connection for compatible fall protection equipment in construction, roofing, maintenance, and other elevated work environments.
