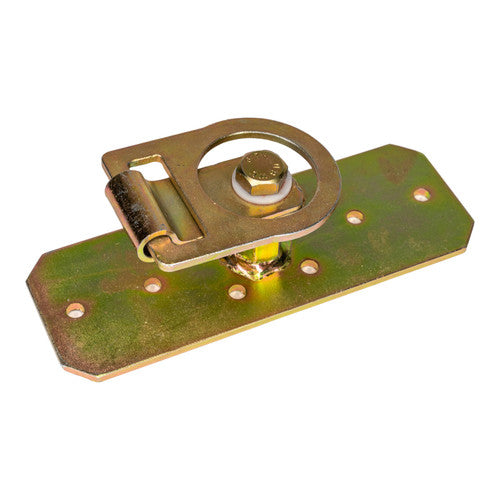

Palmer Safety Metal Roof Swivel D-Ring Anchor (ANCHORDRINGSW) – 360° Swivel & 180° Flip Ring

The Palmer Safety ANCHORDRINGSW Metal Roof Swivel D-Ring Anchor provides a reliable fall protection anchorage point designed specifically for metal roofing applications. Engineered for use on R-panel and standing seam roofs, this anchor connects through the metal roof panel and into the supporting structure below to create a secure tie-off point for compatible fall protection systems.

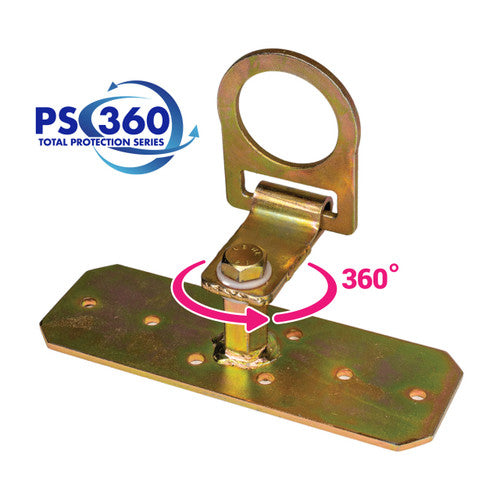

Featuring a 360° swivel base and 180° flip D-ring, this anchor helps maintain proper connection alignment as workers move across the roof, improving mobility and reducing unnecessary strain on the connection point.

Important: Fasteners are NOT included. Installer must provide fasteners appropriate for the specific roof system and structural substrate. Installation must be completed according to the jobsite fall protection plan and applicable requirements.

Key Features

• 360° Swivel + 180° Flip D-Ring Design – Helps keep the connection aligned with worker movement for improved mobility and positioning
• Designed for Metal Roofs – Compatible with R-panel and standing seam roofing systems (22 gauge or thicker)
• Single-User Anchorage Point – Rated for one connection per anchor
• High-Strength Construction – 5,000 lb minimum breaking strength with a 3,600 lb maximum load rating
• Durable Steel Construction – Features a drop-forged D-ring and zinc electroplate finish for added durability
• Reusable Design – Can be removed and repositioned for certain project applications
• Reliable Fall Protection Solution – Designed for compatible fall arrest and restraint configurations

Specifications

• Brand: Palmer Safety
• Model: ANCHORDRINGSW
• Type: Metal Roof Swivel D-Ring Anchor
• Dimensions: 4" x 8"
• Weight: 3 lbs
• Capacity: Maximum 1 connection per anchor
• Worker Weight Range: 130–310 lbs (including tools and equipment)
• Material: Steel construction with drop-forged D-ring
• Finish: Zinc electroplate
• Minimum Breaking Strength: 5,000 lbs
• Maximum Load: 3,600 lbs

Applications

Ideal for:

• Metal roof fall protection
• Roofing contractors
• Construction projects
• Maintenance work
• Temporary or permanent anchorage applications (per fall protection program)
• Compatible fall arrest and restraint systems

Choose the Palmer Safety Metal Roof Swivel D-Ring Anchor for a dependable roof anchorage solution that provides improved movement, positioning, and worker safety on metal roofing applications.
